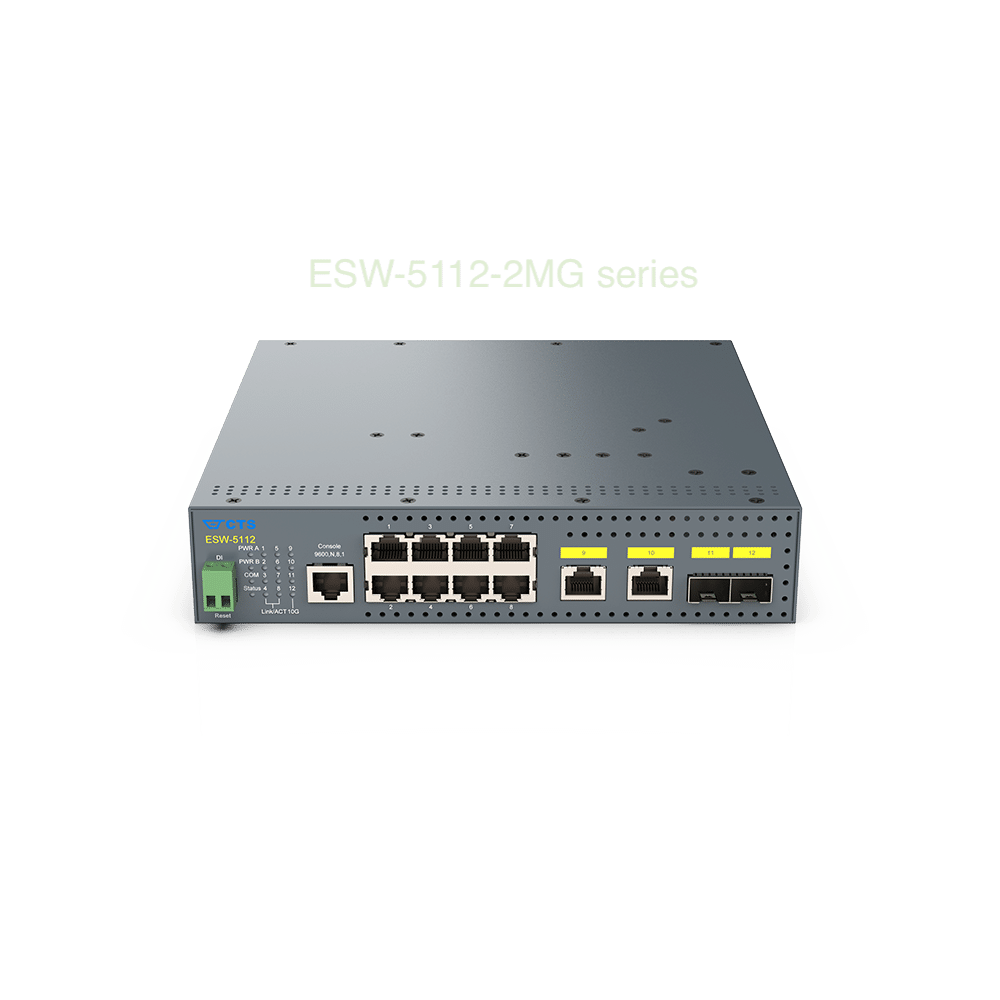

ESW-5112-2MG

Managed Ethernet Switch with 8 x 1Gbps-ports, 2 x MultiGig-ports and 2 x 1/10Gbps SFP slots

ESW-5112 is a managed layer 2 Ethernet switch equipped with 8 ports of 10/100/1000Base-T RJ-45 and 2 ports of 100M/1G/2.5G/5G/10GBase-T (compliant with NBase-T standard) for downlink, and 2 ports of 1/10GBase-R SFP+ for uplink. All SFP+ slots can accommodate a wide range of SFP/SFP+ transceivers including single-mode, multi-mode, and WDM. The compact size of 8.5 inches, smaller than half of a standard 19-inch rack’s width, makes it ideal for installations where space is limited or a small footprint is essential.

ESW-5112 has rich functionalities and is suitable for SMBs and enterprises who intend to implement FTTX Ethernet networks along with the capability of versatile integration into the existing network infrastructure.

CTSystems
10G
Supports 10 Gigabit fiber to fiber media conversion
CTSystems
DHCP Auto Provisioning
Automatically upgrades the firmware and configuration from DHCP server to save the maintenance cost
CTSystems
Flexible IPTV Deployment
Designed with rich functions in facilitating multimedia streaming and provides a stable IPTV service with high quality
CTSystems
IPv4/IPv6 Dual Stack
Supports both IPv4 and IPv6, saving your costs when transitioning from IPv4 to a IPv6 network
CTSystems
Loop Detection
Automatically prevents the loop events from causing congestion in the network and keeps your service stable
CTSystems
Dual Rate Fiber
Automatically senses and adjusts the fiber speed when changes are made in the network environment, providing a longer lifespan for the product
CTSystems
Power Redundancy
Keeps the device working when facing unexpected damage on power modules
CTSystems
Dual Image
Prevents your device to die from firmware upgrade failures
CTSystems
Power Down Trap
Lets the device send a last message to the NOC when power is shut off and saves costs on deploying human resource for trouble shooting
CTSystems
Multicast VLAN Registration
Reduce the bandwith required to distribute IPTV multicast streams be means of sharing single traffic across different VLANs.
CTSystems
Intelligent Diagnostics
Allow system operational monitoring in real-time, and instantly fault-identify SFF-8472-specification-compatible optical modules according to user-defined threshold parameters.
Model
Info
Version
Download File
ESW-5112
Datasheet

A02

CT System Downloads
ESW-5112
Manual

V1.0

CT System Downloads
ESW-5112
Manual (NMS)

V1.0

CT System Downloads
ModelFiber PortTP PortSupport Power Source
SpeedTypePortsSpeedPorts
ESW-5112-2MG-1A1/10GbpsSFP210/100/1000Mbps8Fixed 1 Internal AC
100M/1G/2.5G/5G/10Gbps2
ESW-5112-2MG-1D1/10GbpsSFP210/100/1000Mbps8Fixed 1 Internal DC
100M/1G/2.5G/5G/10Gbps2
ESW-5112-2MG-1AE1/10GbpsSFP210/100/1000Mbps8Fixed 1 Internal AV and Fixed 1 External DC 12V
100M/1G/2.5G/5G/10Gbps2
ESW-5112-2MG-1E1/10GbpsSFP210/100/1000Mbps8Fixed 1 External DC 12V
100M/1G/2.5G/5G/10Gbps2
