HES-5105SFP+

5-Port Managed Multi-G Ethernet CPE Switch

The product inherits features and quaility from the HES series, a market-proven CPE switch designed for Point-to-Point Fiber-to-the-Home scenarios. Along with enhanced hardware capacity and 10G speed, its improved Internet Diagnostic functions (iProbe) add significant value to the daily operations of service providers and network operators.

CTSystems
10G
Supports 10 Gigabit fiber to fiber media conversion
CTSystems
DHCP Auto Provisioning
Automatically upgrades the firmware and configuration from DHCP server to save the maintenance cost
CTSystems
IPv4/IPv6 Dual Stack
Supports both IPv4 and IPv6, saving your costs when transitioning from IPv4 to a IPv6 network
CTSystems
Dual Image
Prevents your device to die from firmware upgrade failures
CTSystems
Flexible IPTV Deployment
Designed with rich functions in facilitating multimedia streaming and provides a stable IPTV service with high quality
CTSystems
Intelligent Diagnostics
Allow system operational monitoring in real-time, and instantly fault-identify SFF-8472-specification-compatible optical modules according to user-defined threshold parameters.
CTSystems
Dual Rate Fiber
Automatically senses and adjusts the fiber speed when changes are made in the network environment, providing a longer lifespan for the product
CTSystems
Power Down Trap
Lets the device send a last message to the NOC when power is shut off and saves costs on deploying human resource for trouble shooting
CTSystems
Loop Detection
Automatically prevents the loop events from causing congestion in the network and keeps your service stable
CTSystems

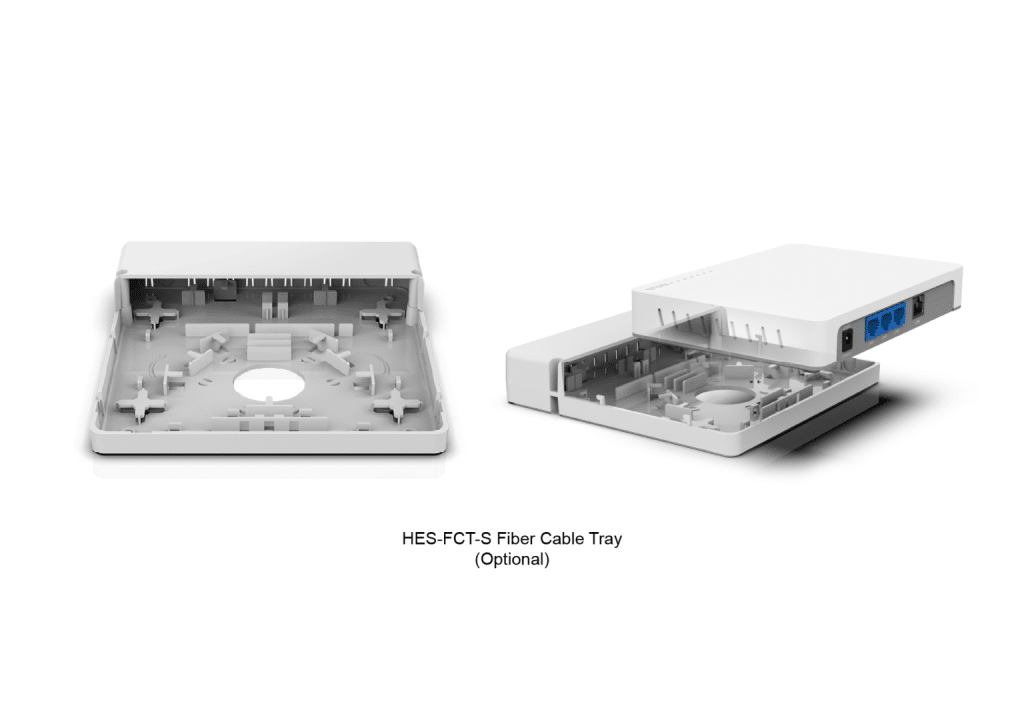

Fast and Secured Installation
Manages and secures the fiber cable and fiber connector with a fiber cable tray, which is a perfect for green field installations
CTSystems
iProbe
IPTV monitoring, end user device emulation and cable test that makes troubleshooting easy through Web GUI, CLI, SNMP & Schedule *Supports HES-3106/HES-3106-PLUS/HES-3106B only.
Model
Info
Version
Download File
HES-5105SFP+
Datasheet

A02

ModelFiber PortTP PortSupport Power Source
SpeedTypePortsSpeedPorts
HES-5105SFP+1/10GbpsSFP+110G/5G/2,5G/1G/100Mbps112 VCD External Power Adapter
2,5G/1G/100Mbps3
