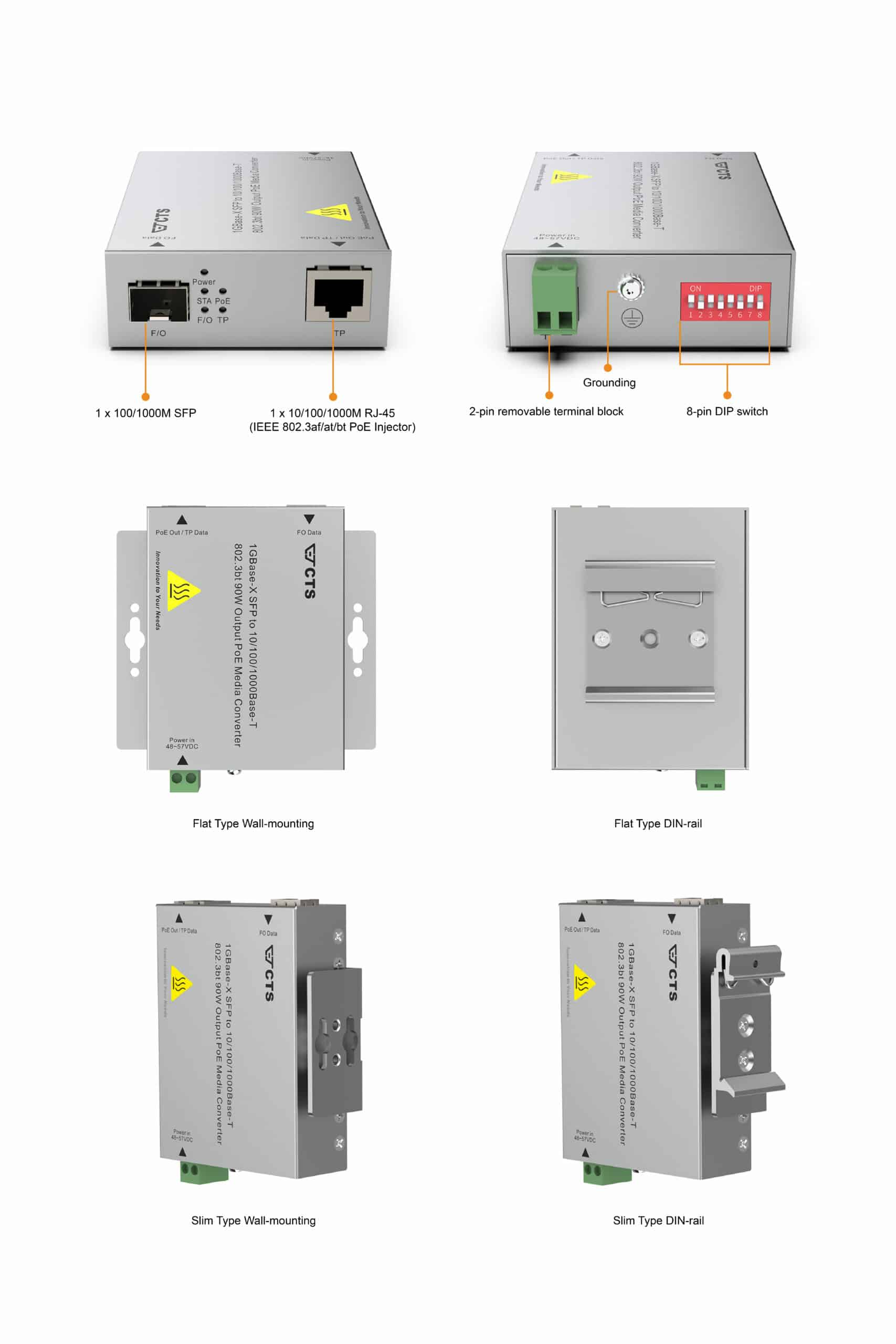

SRC-3002SFP-BT

Rugged Media Converter

SRC-3002SFP-BT functions as a robust media converter designed to operate in temperatures ranging from -20 to 60˚C.

It facilitates the conversion from 100/1000Base-X SFP to a 10/100/1000Base-T RJ-45 port, fully compliant with the IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards

CTSystems
Power Over Ethernet
Enables you to provide power through the ethernet cable and reduces your deployment costs
CTSystems
Link Alarm
If TP or fiber port is down during operation, the other port will automatically shutdown to alert the user
Model
Info
Version
Download File
SRC-3002SFP-BT
Datasheet

A02

CT System Downloads
SRC-3002SFP-BT
Manual

V1.0

CT System Downloads
SRC-3002SFP-BT
Mounting installation guide

V1.0

CT System Downloads
ModelFiber portTP PortPower Source
Speed (Mpbs)TypeSlotSpeed (Mpbs)Port
SRC-3002SFP-BT100/1000SFP110/100/100011 x 48~57V DC with
2-pin removable terminal block
