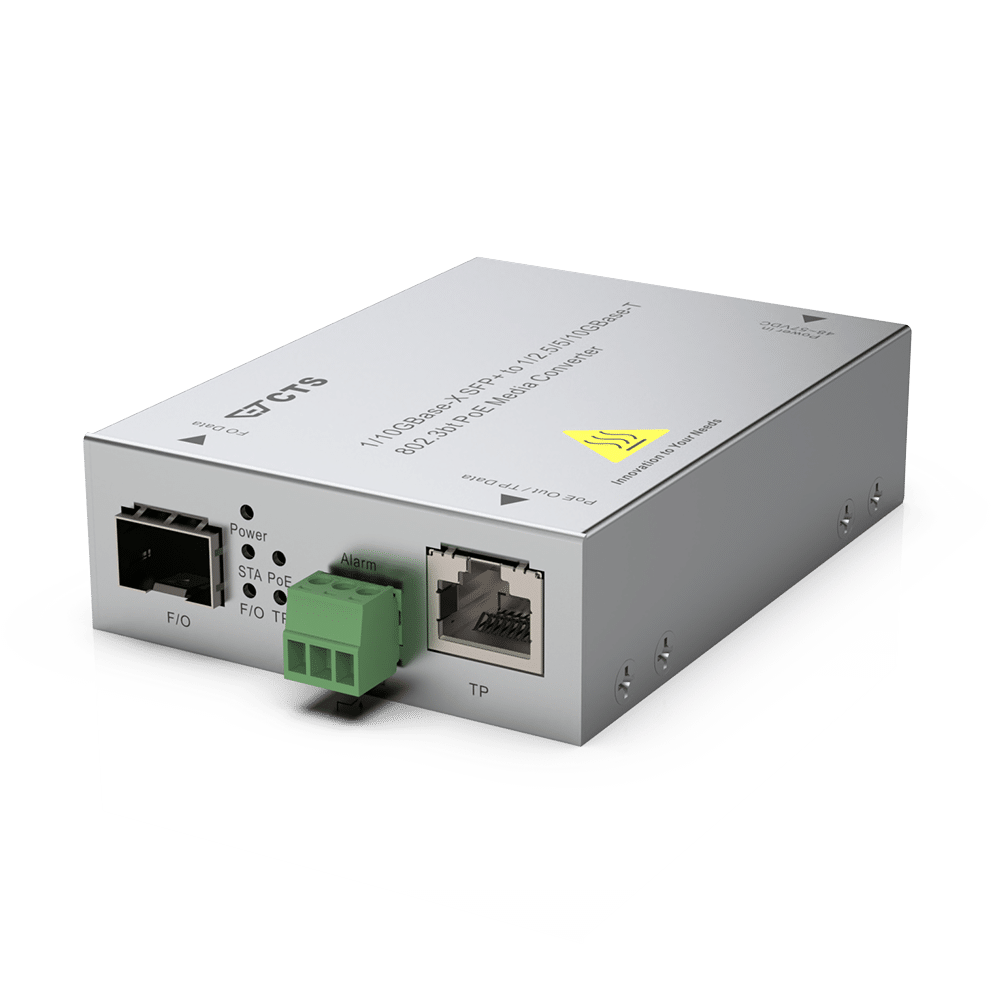

SRC-5002SFP-MG-BT

Rugged PoE Media Converter

SRC-5002SFP-MG-BT is a high-performance media converter designed to provide seamless connectivity between 10G fiber networks and multigigabit Ethernet devices. It supports operation in a wide temperature range from -20 to 60˚C, ensuring reliable performance in demanding environments.

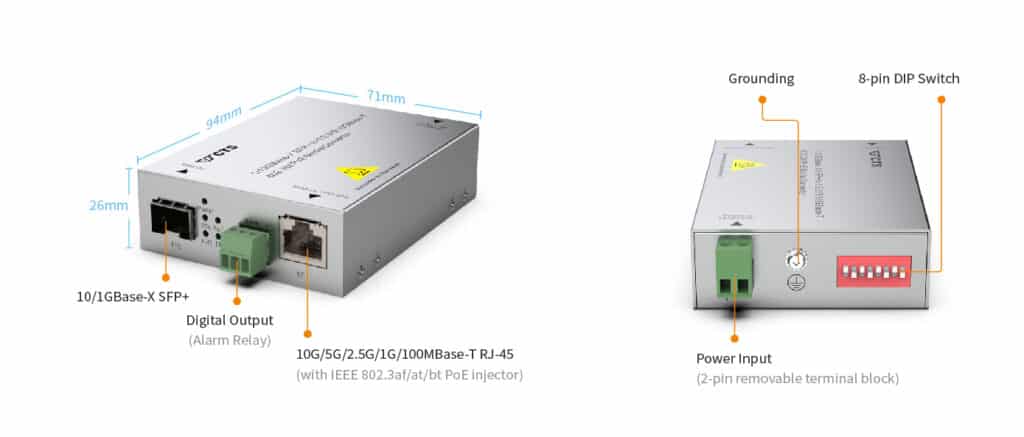

SRC-5002SFP-MG-BT features one 10/1GBase-X SFP+ slot and one 10G/5G/2.5G/1G/100MBase-T RJ-45 port, offering compatibility with a wide range of network infrastructures. This allows efficient data transmission, making it an ideal solution for high-speed networking applications, such as surveillance and outdoor network deployments.

Supporting IEEE 802.3af/at/bt standards, the SRC-5002SFP-MG-BT delivers up to 60 watts of PoE power through the RJ-45 port, simplifying power distribution to connected powered devices (PDs). It also features intuitive LED indicators and a DIP switch for easy configuration and real-time status monitoring. The TP/FO alarm function enhances network reliability by providing alerts for link failures, enabling prompt troubleshooting.
