EPS-5112-8BT

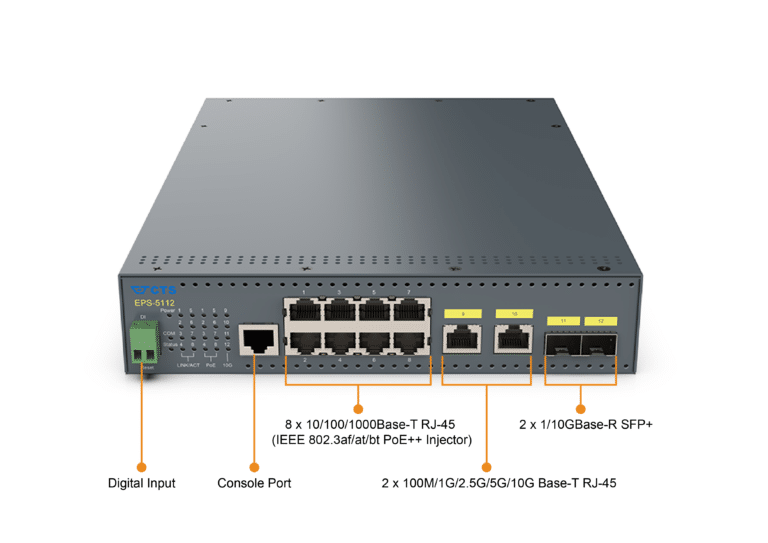

EPS-5112-8BT is a layer 2 managed PoE switch equipped with 8 ports of 10/100/1000Base-T RJ-45 with IEEE 802.3af/at/bt PoE injector, 2 ports of 100M/1G/2.5G/5G/10GBase-T (compliant with NBase-T standard), and 2 ports of 1/10GBase-R SFP+. The SFP+ slots can accommodate a wide range of SFP/SFP+ transceivers including single-mode, multi-mode, and WDM.

EPS-5112-8BT has 8 10/100/1000Base-T RJ-45 ports that supports the IEEE 802.3bt PoE++ standard technology, it can provide PoE power output up to 90 watts of power by using all the four pairs of standard Ethernet cabling to deliver power with up to 1Gbps speed for each remote PoE compliant powered device (PD). Plus, EPS-5112-8BT is 8.5 inches in width, altogether making it the best solution for network infrastructure. approach possible

10G

Supports 10 Gigabit fiber to fiber media conversion

Loop Detection

Automatically prevents the loop events from causing congestion in the network and keeps your service stable

DHCP Auto Provisioning

Automatically upgrades the firmware and configuration from DHCP server to save the maintenance cost

Power Over Ethernet

Enables you to provide power through the ethernet cable and reduces your deployment costs

Power Redundancy

Keeps the device working when facing unexpected damage on power modules

IPv4/IPv6 Dual Stack

Supports both IPv4 and IPv6, saving your costs when transitioning from IPv4 to a IPv6 network

Dual Image

Prevents your device to die from firmware upgrade failures

PoE Scheduling

Edits the schedule and defines when to turn on or off the PoE power for each port to effectively manage the total power budget

Flexible IPTV Deployment

Designed with rich functions in facilitating multimedia streaming and provides a stable IPTV service with high quality

Multicast VLAN Registration

Reduce the bandwith required to distribute IPTV multicast streams be means of sharing single traffic across different VLANs.

Intelligent Diagnostics

Allow system operational monitoring in real-time, and instantly fault-identify SFF-8472-specification-compatible optical modules according to user-defined threshold parameters.

Dual Rate Fiber

Automatically senses and adjusts the fiber speed when changes are made in the network environment, providing a longer lifespan for the product

Model

Info

Version

Download File

EPS-5112-8BT

Datasheet

A02

EPS-5112-8BT

User’s Manual (HW)

V1.1

Model	Fiber Port			TP Port		Support Power Source
	Speed	Type	Ports	Speed	Ports
EPS-5112-8BT-200W	1/10Gbps	SFP+	2	10/100/1000Mbps	8 with 802.3af/at/bt Injector	Fixed 1 Internal AC
				100M/1G/2.5G/5G/10GBPS	2
