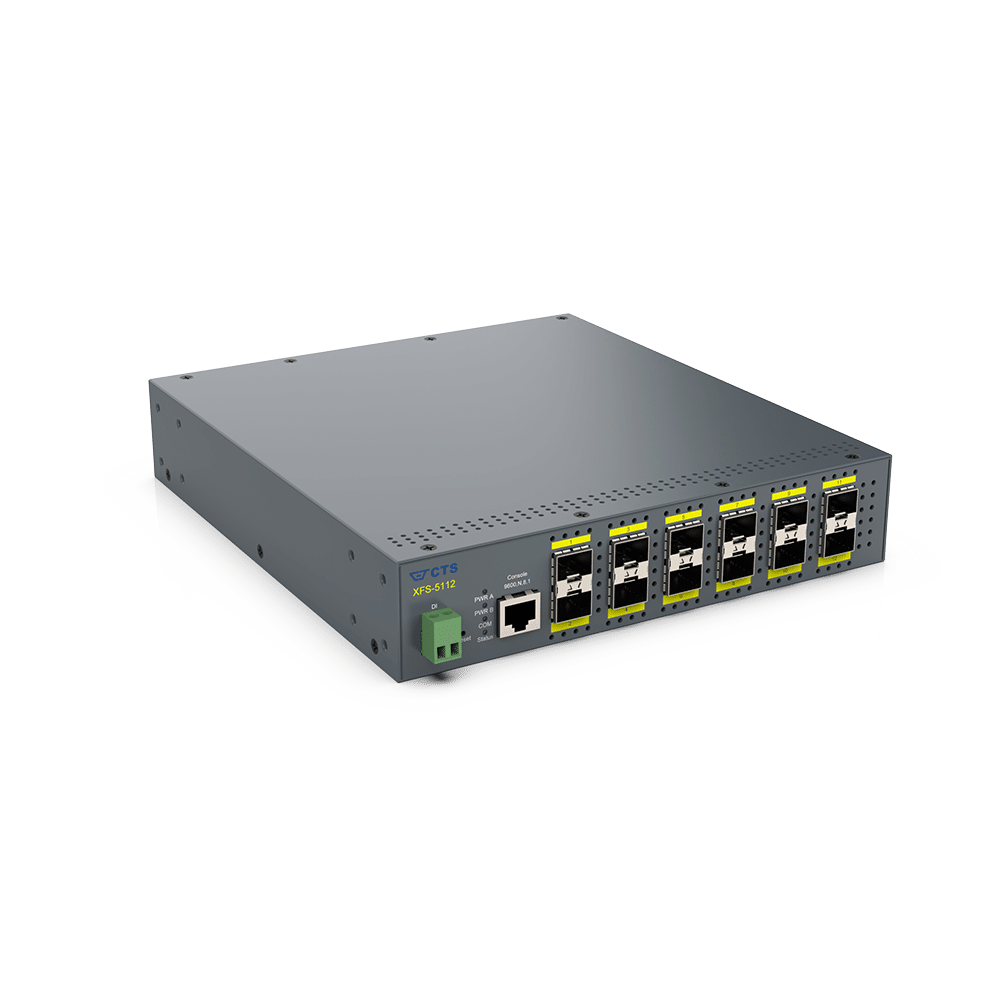

XFS-5112

12 x 10G/1GBase-X SFP+ Layer 2+ Managed Switch

XFS-5112 Layer 2+ Switch is engineered to provide high-performance, scalable network solutions for enterprise and data center environments.

Featuring a non-blocking switch fabric with a capacity of 240Gbps, it ensures efficient, uninterrupted data transmission across your network. This switch combines powerful hardware with advanced redundancy protocols to support complex network configurations, providing seamless connectivity and superior reliability.

Features
Downloads
Models

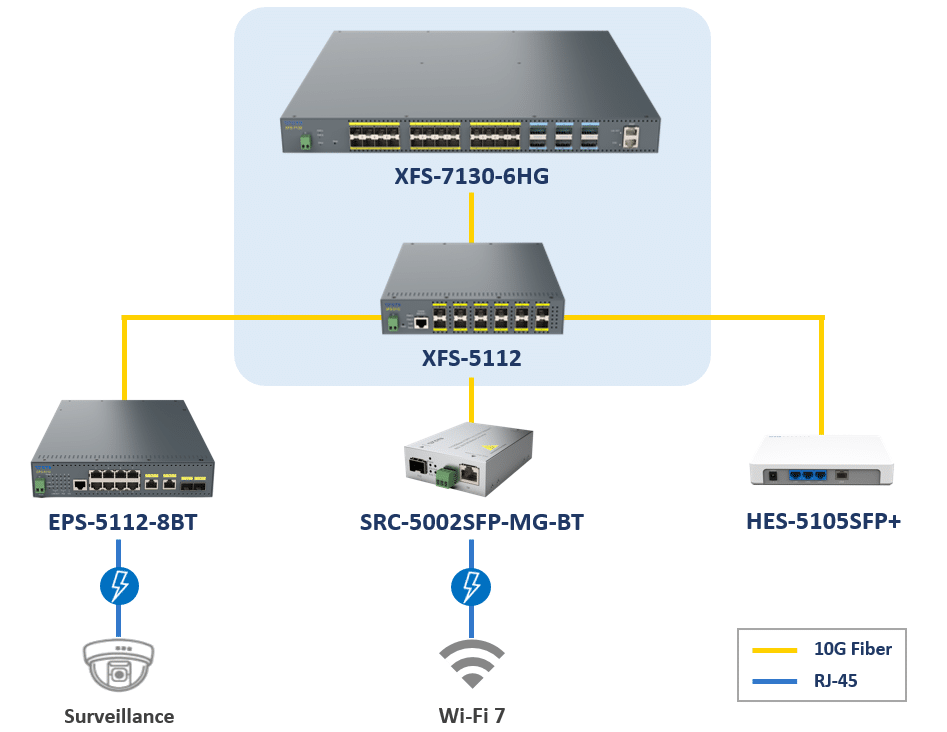

Topology

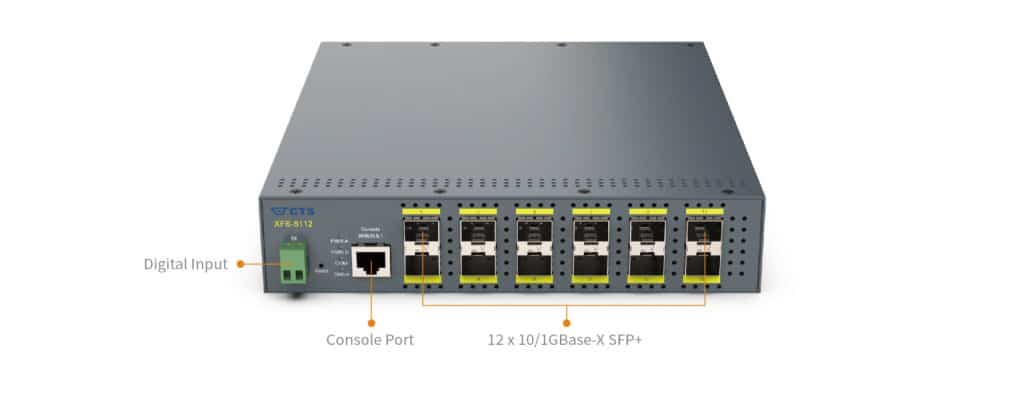

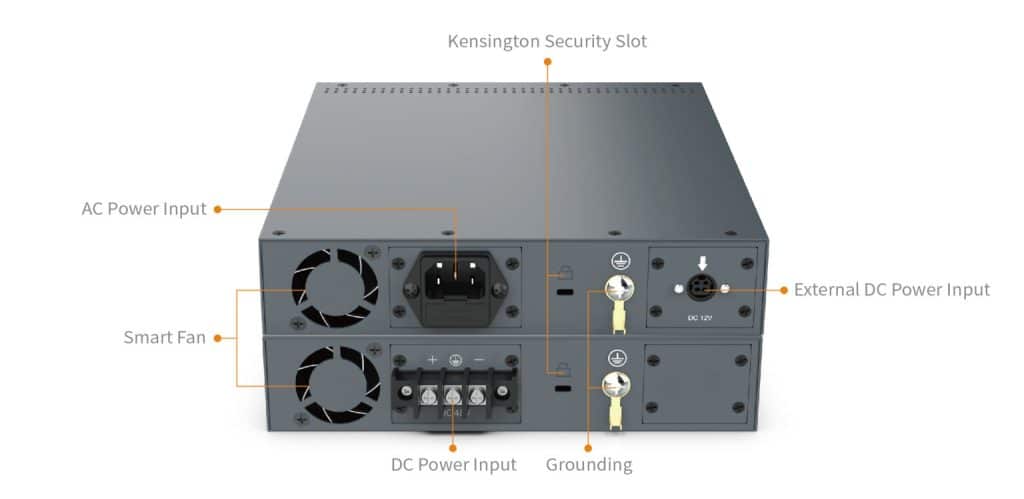

Hardware

10G

Supports 10 Gigabit fiber to fiber media conversion

Power Down Trap

Lets the device send a last message to the NOC when power is shut off and saves costs on deploying human resource for trouble shooting

Power Redundancy

Keeps the device working when facing unexpected damage on power modules

DHCP Auto Provisioning

Automatically upgrades the firmware and configuration from DHCP server to save the maintenance cost

Loop Detection

Automatically prevents the loop events from causing congestion in the network and keeps your service stable

Dual Rate Fiber

Automatically senses and adjusts the fiber speed when changes are made in the network environment, providing a longer lifespan for the product

Dual Image

Prevents your device to die from firmware upgrade failures

Flexible IPTV Deployment

Designed with rich functions in facilitating multimedia streaming and provides a stable IPTV service with high quality

Intelligent Diagnostics

Allow system operational monitoring in real-time, and instantly fault-identify SFF-8472-specification-compatible optical modules according to user-defined threshold parameters.

Model

Info

Version

Download File

XFS-5112

Datasheet

A02

XFS-5112

Manual

V1.0

Model	Fiber Port			Support Power Source
	Speed	Type	Ports
XFS-5112-1A	10G/1G	SFP+	12	1 x Fixed Internal 100-240VAC

XFS-5112-1D	10G/1G	SFP+	12	1 x Fixed Internal 48VDC
XFS-5112-1D	10G/1G	SFP+	12	1 x Fixed Internal 100-240VAC + 1 x Fixed External 12VDC (via R7B adapter)
